写在前面：

用过Synology Note Station，Joplin，Confluence，也私有化部署过为知笔记。简单做个对比。

	Synology Note Station	Joplin	Confluence	为知笔记	Outline
客户端支持	支持全平台	支持全平台	仅web版	仅web版	仅web版
支持插件的全面性	几乎没有	很丰富	很丰富	几乎没有	够用
界面美观	简陋	一般	还不错	简陋	还不错
易用性	简单上手	需要自己搭server端	比较复杂	简陋	简单上手
数据库/多端同步	全平台自动同步	全平台自动同步	web端实时更新	web端实时更新	web端实时更新
资源占用	群晖自带忽略不计	pg占了一点儿内存	云端服务器，私有化没搞过，据说内存占用较大	较低	较低

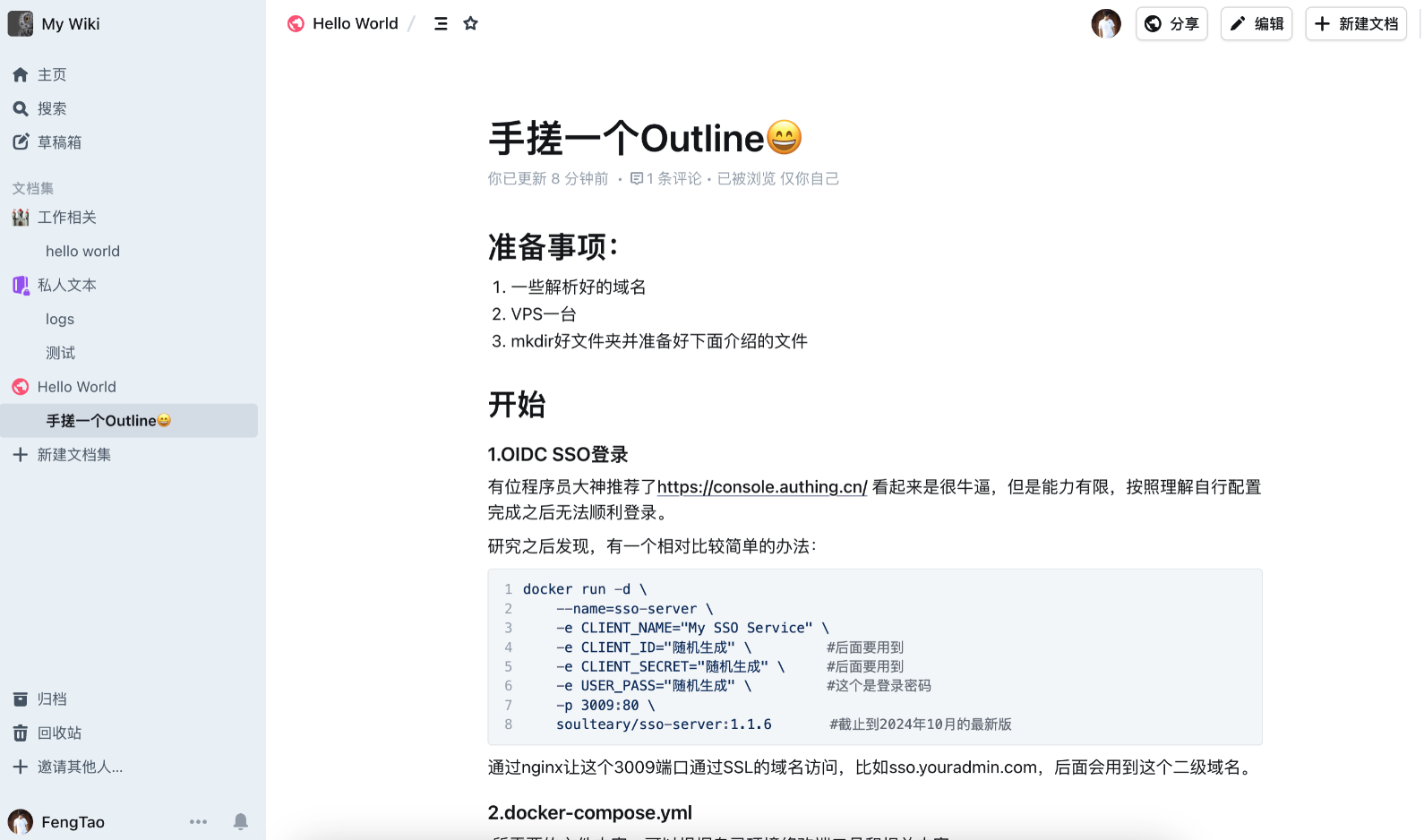

总得来说Outline还是比较不错的一个选择，支持树形结构展示，美观又易上手，登录有SSO和双因素认证，也有适合多人使用的鉴权和基本的权限管理。

缺点是拖拽上传的图片上传容易，但是删除仅是在前端删除，源数据想要彻底删除，需要手动到minio里去删，前后端并没有做到完全同步。

准备事项：

一些解析好的域名
服务器一台
mkdir好文件夹并准备好下面介绍的文件

开始

1.OIDC SSO登录

有位程序员大神推荐了https://console.authing.cn/ 看起来是很牛逼，但是能力有限，按照理解自行配置完成之后无法顺利登录。

研究之后发现，有一个相对比较简单的办法：

docker run -d \
    --name=sso-server \
    -e CLIENT_NAME="My SSO Service" \
    -e CLIENT_ID="随机生成" \         #后面要用到
    -e CLIENT_SECRET="随机生成" \     #后面要用到
    -e USER_PASS="随机生成" \         #这个是登录密码
    -p 3009:80 \
    soulteary/sso-server:1.1.6

通过nginx让这个3009端口通过SSL的域名访问，比如sso.youradmin.com，后面会用到这个二级域名。

2.docker-compose.yml

所需要的文件内容，可以根据自己环境修改端口号和相关内容

version: "3"
services:

  outline:
    image: outlinewiki/outline:latest
    env_file: ./docker.env
    command: sh -c "yarn start"
    ports:
      - "3000:3000"
    depends_on:
      - postgres
      - redis
      - storage

  redis:
    image: redis
    ports:
      - "6379:6379"
    volumes:
      - ./redis.conf:/redis.conf
    command: ["redis-server", "/redis.conf"]
    healthcheck:
      test: ["CMD", "redis-cli", "ping"]
      interval: 10s
      timeout: 30s
      retries: 3

  postgres:
    image: postgres
    ports:
      - "5432:5432"
    volumes:
      - ./database-data:/var/lib/postgresql/data
    healthcheck:
      test: ["CMD", "pg_isready -U user"]
      interval: 30s
      timeout: 20s
      retries: 3
    environment:
      POSTGRES_USER: 'wiki'
      POSTGRES_PASSWORD: 'wiki'
      POSTGRES_DB: 'outline'

  storage:
    image: minio/minio
    env_file: ./docker.env
    ports:
      - "9001:9001"
      - "9002:9002"
    entrypoint: sh
    command: -c 'minio server /data --address ":9001" --console-address ":9002"'
    deploy:
      restart_policy:
        condition: on-failure
    volumes:
      - ./storage-data:/data
    healthcheck:
      test: ["CMD", "curl", "-f", "https://minio.youradmin.com/minio/health/live"] #域名需要自己修改
      interval: 30s
      timeout: 20s
      retries: 3
    environment:
      - MINIO_ROOT_USER=随机生成一个       #minio的登录名
      - MINIO_ROOT_PASSWORD=随机生成一个   #minio的登录密码

注意，minio的9002端口是管理端登录界面，9001是API端口，实际上env里的域名是nginx映射9001端口的。

3.docker.env

根据自己环境修改端口号和相关内容

# –––––––––––––––– REQUIRED ––––––––––––––––

NODE_ENV=production

# Generate a hex-encoded 32-byte random key. You should use `openssl rand -hex 32`
# in your terminal to generate a random value.
SECRET_KEY=随机生成一个     #自行解决

# Generate a unique random key. The format is not important but you could still use
# `openssl rand -hex 32` in your terminal to produce this.
UTILS_SECRET=随机生成一个   #自行解决

# For production point these at your databases, in development the default
# should work out of the box.
DATABASE_URL=postgres://wiki:wiki@postgres:5432/outline
DATABASE_URL_TEST=postgres://wiki:wiki@postgres:5432/outline-test
DATABASE_CONNECTION_POOL_MIN=
DATABASE_CONNECTION_POOL_MAX=
# Uncomment this to disable SSL for connecting to Postgres
PGSSLMODE=disable

# For redis you can either specify an ioredis compatible url like this
REDIS_URL=redis://redis:6379
# or alternatively, if you would like to provide additional connection options,
# use a base64 encoded JSON connection option object. Refer to the ioredis documentation
# for a list of available options.
# Example: Use Redis Sentinel for high availability
# {"sentinels":[{"host":"sentinel-0","port":26379},{"host":"sentinel-1","port":26379}],"name":"mymaster"}
# REDIS_URL=ioredis://eyJzZW50aW5lbHMiOlt7Imhvc3QiOiJzZW50aW5lbC0wIiwicG9ydCI6MjYzNzl9LHsiaG9zdCI6InNlbnRpbmVsLTEiLCJwb3J0IjoyNjM3OX1dLCJuYW1lIjoibXltYXN0ZXIifQ==

# URL should point to the fully qualified, publicly accessible URL. If using a
# proxy the port in URL and PORT may be different.
URL=https://youradmin  #你自己的域名
PORT=3000

# See [documentation](docs/SERVICES.md) on running a separate collaboration
# server, for normal operation this does not need to be set.
COLLABORATION_URL=

# To support uploading of images for avatars and document attachments an
# s3-compatible storage must be provided. AWS S3 is recommended for redundancy
# however if you want to keep all file storage local an alternative such as
# minio (https://github.com/minio/minio) can be used.

# A more detailed guide on setting up S3 is available here:
# => https://wiki.generaloutline.com/share/125de1cc-9ff6-424b-8415-0d58c809a40f
#
AWS_ACCESS_KEY_ID=MINIO_ROOT_USER   #docker-compose.yml里的minio登录名
AWS_SECRET_ACCESS_KEY=MINIO_ROOT_PASSWORD #docker-compose.yml里的minio登录密码
AWS_REGION=local
# AWS_S3_ACCELERATE_URL=
AWS_S3_UPLOAD_BUCKET_URL=https://minio.youradmin.com #这个域名是minio的域名，是nginx反代的9001端口
AWS_S3_UPLOAD_BUCKET_NAME=wiki-bucket
AWS_S3_UPLOAD_MAX_SIZE=26214400
# AWS_S3_FORCE_PATH_STYLE=true
AWS_S3_ACL=public-read


# –––––––––––––– AUTHENTICATION ––––––––––––––

# Third party signin credentials, at least ONE OF EITHER Google, Slack,
# or Microsoft is required for a working installation or you'll have no sign-in
# options.

# To configure Slack auth, you'll need to create an Application at
# => https://api.slack.com/apps
#
# When configuring the Client ID, add a redirect URL under "OAuth & Permissions":
# https://<URL>/auth/slack.callback
# SLACK_CLIENT_ID=
# SLACK_CLIENT_SECRET=

# To configure Google auth, you'll need to create an OAuth Client ID at
# => https://console.cloud.google.com/apis/credentials
#
# When configuring the Client ID, add an Authorized redirect URI:
# https://<URL>/auth/google.callback
# GOOGLE_CLIENT_ID=
# GOOGLE_CLIENT_SECRET=

# To configure Microsoft/Azure auth, you'll need to create an OAuth Client. See
# the guide for details on setting up your Azure App:
# => https://wiki.generaloutline.com/share/dfa77e56-d4d2-4b51-8ff8-84ea6608faa4
# AZURE_CLIENT_ID=57ce0aec-d374-4dd7-8cc0-4be3e446208e
# AZURE_CLIENT_SECRET=o8~8Q~ZGaei49nqG2Z-WL5GBRPeMdvI3pzVvcbuZ
# AZURE_RESOURCE_APP_ID=00000003-0000-0000-c000-000000000000

# To configure generic OIDC auth, you'll need some kind of identity provider.
# See documentation for whichever IdP you use to acquire the following info:
# Redirect URI is https://<URL>/auth/oidc.callback
OIDC_CLIENT_ID=CLIENT_ID          #第一步中设置的CLIENT_ID
OIDC_CLIENT_SECRET=CLIENT_SECRET  #第一步中设置的CLIENT_SECRET
OIDC_AUTH_URI=https://sso.youradmin.com/dialog/authorize       #第一步中反代sso的域名
OIDC_TOKEN_URI=https://sso.youradmin.com//oauth/token          #第一步中反代sso的域名
OIDC_USERINFO_URI=https://sso.youradmin.com//api/outline/oidc  #第一步中反代sso的域名

# Specify which claims to derive user information from
# Supports any valid JSON path with the JWT payload
OIDC_USERNAME_CLAIM=preferred_username

# Display name for OIDC authentication
OIDC_DISPLAY_NAME=My SSO

# Space separated auth scopes.
OIDC_SCOPES=openid profile email


# –––––––––––––––– OPTIONAL ––––––––––––––––

# Base64 encoded private key and certificate for HTTPS termination. This is only
# required if you do not use an external reverse proxy. See documentation:
# https://wiki.generaloutline.com/share/1c922644-40d8-41fe-98f9-df2b67239d45
# SSL_KEY=
# SSL_CERT=

# If using a Cloudfront/Cloudflare distribution or similar it can be set below.
# This will cause paths to javascript, stylesheets, and images to be updated to
# the hostname defined in CDN_URL. In your CDN configuration the origin server
# should be set to the same as URL.
# CDN_URL=

# Auto-redirect to https in production. The default is true but you may set to
# false if you can be sure that SSL is terminated at an external loadbalancer.
FORCE_HTTPS=false

# Have the installation check for updates by sending anonymized statistics to
# the maintainers
ENABLE_UPDATES=true

# How many processes should be spawned. As a reasonable rule divide your servers
# available memory by 512 for a rough estimate
WEB_CONCURRENCY=1

# Override the maximum size of document imports, could be required if you have
# especially large Word documents with embedded imagery
MAXIMUM_IMPORT_SIZE=5120000

# You can remove this line if your reverse proxy already logs incoming http
# requests and this ends up being duplicative
# DEBUG=http

# For a complete Slack integration with search and posting to channels the
# following configs are also needed, some more details
# => https://wiki.generaloutline.com/share/be25efd1-b3ef-4450-b8e5-c4a4fc11e02a
#
# SLACK_VERIFICATION_TOKEN=
# SLACK_APP_ID=
# SLACK_MESSAGE_ACTIONS=

# Optionally enable google analytics to track pageviews in the knowledge base
# GOOGLE_ANALYTICS_ID=

# Optionally enable Sentry (sentry.io) to track errors and performance,
# and optionally add a Sentry proxy tunnel for bypassing ad blockers in the UI:
# https://docs.sentry.io/platforms/javascript/troubleshooting/#using-the-tunnel-option)
# SENTRY_DSN=
# SENTRY_TUNNEL=

# To support sending outgoing transactional emails such as "document updated" or
# "you've been invited" you'll need to provide authentication for an SMTP server
# SMTP_HOST=<SMTP服务器>
# SMTP_PORT=<SMTP端口，比如465>
# SMTP_USERNAME=<SMTP用户名>
# SMTP_PASSWORD=<SMTP密码>
# SMTP_FROM_EMAIL=<发件人地址>
# SMTP_REPLY_EMAIL=<邮件回复地址>
# SMTP_TLS_CIPHERS=TLSv1.2
# SMTP_SECURE=true

# The default interface language. See translate.getoutline.com for a list of
# available language codes and their rough percentage translated.
DEFAULT_LANGUAGE=zh_CN

# Optionally enable rate limiter at application web server
RATE_LIMITER_ENABLED=true

# Configure default throttling parameters for rate limiter
RATE_LIMITER_REQUESTS=1000
RATE_LIMITER_DURATION_WINDOW=60

4.Enjoy it

 docker-compose up -d       #up

 docker-compose down        #down

遇到过的坑

Q：无法上传图片

A：初始化数据库

建一个文件 docker-compose-init-minio.yml

version: "3"
services:

  startup:
    image: minio/mc
    entrypoint: /bin/sh -c "
      /usr/bin/mc config host rm local;
      /usr/bin/mc config host add local https://minio.youradmin.com MINIO_ROOT_USER MINIO_ROOT_PASSWORD;  #在docker-compose.yml中设置过
      /usr/bin/mc mb local/wiki-bucket;
      /usr/bin/mc anonymous set public local/wiki-bucket;  #和env里的保持一致
      exit 0;"

后续

Q:在公网上暴露了太多端口。
A:是否有机会仅暴露一个端口，并强制通过SSL访问，其他端口只在容器内部交换数据。
目前SSO和Outline是两个yml启动的，可以合并到一个yml和一个env环境中。目前我的SSO和Outline不在一个服务器上，所以也还OK。

优化

SSO单点登录优化：

问题：通过命令行启动默认用户名和邮箱无法更改

目标：可以更改默认的用户名和邮箱

创建 docker-compose.yml

version: "3.6"

services:

  self-hosted-sso-server:
    image: soulteary/sso-server:1.1.6
    container_name: sso-server-linshi
    hostname: sso-server-linshi
    restart: always
    ports:
      - 3009:80
    volumes:
      - /etc/localtime:/etc/localtime:ro
      - /etc/timezone:/etc/timezone:ro
    command: ./main
    environment:
      - TZ=Asia/Shanghai
      - PORT=${SERVER_LISTEN_PORT:-80}
      - SESSION_SECRET=${SESSION_SECRET:-}
      - SERVER_NAME=${SERVER_NAME:-}
      - CLIENT_NAME=${CLIENT_NAME:-}
      - CLIENT_ID=${CLIENT_ID:-}
      - CLIENT_SECRET=${CLIENT_SECRET:-}
      - CLIENT_ISTRUSTED=${CLIENT_ISTRUSTED:-}
      - USER_PASS=${USER_PASS:-}
      - LICENSE=${LICENSE:-}
      - LICENSE_FILE=${LICENSE_FILE:-}
      - OTP_OPTION=${OTP_OPTION:-}
    logging:
        driver: "json-file"
        options:
            max-size: "10m"

创建 .env

# Docs @see https://github.com/soulteary/docker-sso-server
CLIENT_ID=自行生成       # 和docker.env保持一致
CLIENT_SECRET=自行生成   # 和docker.env保持一致
USER_PASS=自行生成       # SSO登录密码

# Optional
# CLIENT_ISTRUSTED=false
# SERVER_NAME=SELF-HOSTED SSO
SERVER_LISTEN_PORT=80
# SESSION_SECRET=YOUR_SESSION_SECRET_KEY
CLIENT_NAME=My SSO Service
# OTP_OPTION=KEY:MIZUSR2ZJZTWUSDY;PERIOD:30
LICENSE=自行获取         # https://readers-lic-gift.suyang.wiki/api/reader-benefits 通过这个网址获取
# LICENSE_FILE=

完成后记得修改docker .env中的CLIENT_ID和CLIENT_SECRET

mkdir文件夹中其实有三个文件，分别是 docker-compose-init-minio.yml docker-compose.yml docker.env

不论是未来pull升级还是遇到问题down up重启，都要执行两次docker-compose命令，可以利用startup服务来merge起来，这样一条命令就搞定了。

version: "3"
services:

  outline:
    image: outlinewiki/outline:latest
    env_file: ./docker.env
    command: sh -c "yarn start"
    ports:
      - "3000:3000"
    depends_on:
      - postgres
      - redis
      - storage

  redis:
    image: redis
    ports:
      - "6379:6379"
    volumes:
      - ./redis.conf:/redis.conf
    command: ["redis-server", "/redis.conf"]
    healthcheck:
      test: ["CMD", "redis-cli", "ping"]
      interval: 10s
      timeout: 30s
      retries: 3

  postgres:
    image: postgres
    ports:
      - "5432:5432"
    volumes:
      - ./database-data:/var/lib/postgresql/data
    healthcheck:
      test: ["CMD", "pg_isready -U user"]
      interval: 30s
      timeout: 20s
      retries: 3
    environment:
      POSTGRES_USER: 'wiki'
      POSTGRES_PASSWORD: 'wiki'
      POSTGRES_DB: 'outline'

  storage:
    image: minio/minio
    env_file: ./docker.env
    ports:
      - "9001:9001"
      - "9002:9002"
    entrypoint: sh
    command: -c 'minio server /data --address ":9001" --console-address ":9002"'
    volumes:
      - ./storage-data:/data
    healthcheck:
      test: ["CMD", "curl", "-f", "https://minio.youradmin.com/minio/health/live"] #域名需要自己修改
      interval: 30s
      timeout: 20s
      retries: 3
    environment:
      - MINIO_ROOT_USER=随机生成一个       #minio的登录名
      - MINIO_ROOT_PASSWORD=随机生成一个   #minio的登录密码

  startup:
    image: minio/mc
    depends_on:
      storage:
        condition: service_healthy
    entrypoint: /bin/sh -c "
      /usr/bin/mc config host rm local;
      /usr/bin/mc config host add local https://minio.youradmin.com MINIO_ROOT_USER MINIO_ROOT_PASSWORD;  #在docker-compose.yml中设置过
      /usr/bin/mc mb local/wiki-bucket;
      /usr/bin/mc anonymous set public local/wiki-bucket;  #和env里的保持一致
      exit 0;"
